Installing guide shaft on weight balance system
makes the spindle head movement more rapid
and stable,and resist the swaying of balance w-
eight,so as to ensure processing accuracy.cnc milling machine 5 axis
makes the spindle head movement more rapid
and stable,and resist the swaying of balance w-
eight,so as to ensure processing accuracy.cnc milling machine 5 axis
Triaxial track has adopted hard guideway with high weari resistant turcite,having excellent shock damping effect and strength.

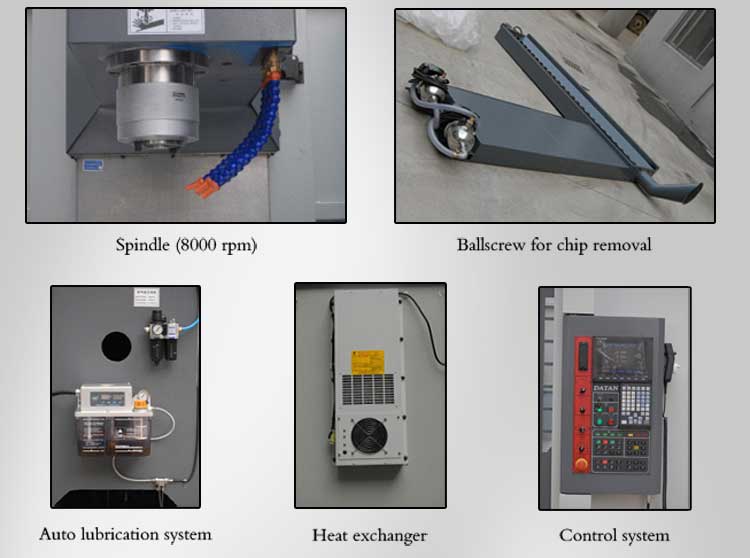

Thiaxial driving system has adopted C3 grade ballscrew,with good advantages of high precision,high rigidity,high loadi-ng and low friction.
Inner gear-type two-speed transmission spindle head with low noise operation can provide stro- ng cutting forces.with gear ratio 1:1and 1:4.
Rrar Y-axis servo motor significantly shorten the distance of charging and discharging the workpiece for the worker and faciliate the charging and
discharging. cnc milling machine 5 axis
discharging. cnc milling machine 5 axis
Box-type structure with a high bending
-resistant capability and the use of finite element
analysis to improve the position and thickness of
ribs have optimized structural rigidity.
-resistant capability and the use of finite element
analysis to improve the position and thickness of
ribs have optimized structural rigidity.
cnc milling machine 5 axis
