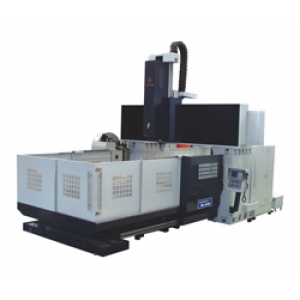

cnc gantry milling machine

Product Details Specification

This cnc gantry milling machine absorbs advanced CNC machine technology and manufacturing standards from United states and Japan.

The worktable eith high rigid roller-type guideways has ensured the machine excellent rigidity and stability.

With gear plate precise positioning, the NC rotary table can keep a long term accuracy.

used gantry milling machine

cnc gantry milling machine

Model No. cnc gantry milling machine		GL-2230	GL-2240	GL-2730A
Capacity	X axis travel/mm	3200	4200	3200
	Y axis travel/mm	2200	2200	2700
	Z axis travel/mm	1000	1000	1000
	Spindle nose to worktable/mm	250-1250
Worktable	Table size(L*W)	3000*1800	4000*1800	3000*2300
	Gate width/mm	2200	2200	2700
	T-slot(widthnumbersspan)	229200	229200	2211200
	Max load on the table/kg	12000	16000	12000
spindle	Spindle speed/rpm	ZF two speed gearbox(1:1/1:4)/6000(4000)
	Spindle taper	7/24 Taper BT50
	Spindle motor/kw	15/18.5
Feedrate	X,Y axis rapid traverse(M/min)	12	10	12
	Z axis rapid traverse(M/min)	10	10	10
	Max cutting feedrate(mm/min)	10-7000
A.T.C	Toolmagazine capacity(opt)/pc	20/24/32/40/60
Optional	Max exterior tool diameter/mm	φ200
	Max tool length/mm	350
	Max tool weight/kg	20
	Tool change time/sec(T-T)	3.5
Accuracy	Axis positioning accuracy/mm	0.025<5000
Accuracy	Axis repeatability positioning accuracy/mm	0.015
Machine size	Power requirement/KVA	40
	Space requirement (L×W)	7750*4650	9900*4650	7840*5150
	Machine height/mm	4800	4800	4850
	Machine weight(T)	36	40	41
	Control system	FANUC-0iMD/Mitsubishi M70
