Home > Lathe > C51 Series CNC Lathe

C51 Series CNC Lathe

Modle:C51 Series

Features:

Packing:: Wooden Case,Standard packing

Delivery Time:: 30 Working Days

Key Specification:

GSK980
Control system
800-2600
Capacity Max. Swing
800-1500
Capacity Max.Workpie
Vertical
Tool Machine's type

Product Details Specification

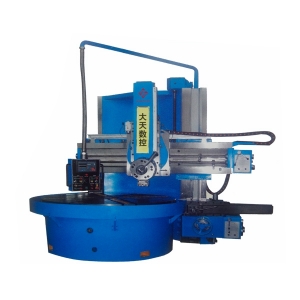

Single Column Vertical Lathe C51/CX51 Series

Main Use of small metal lathe:

This Series Machine is Single Column Vertical Lathe, small metal lathe has a railhead and a sidehead,It's suitable of the ferrous,nonferrous metal and some kinds of non-metal material with hard alloy,high capability and high speed stell tools,it can perform finely and roughly turning cylinder and inner hole,inner and outer taper,grooving,drilling,tapping and reaming.

SKQ Series CNC Lathe SKQ Series
600x1500
SK Series CNC Lathe SK Series
800x1400
SKZ Series CNC Lathe SKZ Series
800x3000

Name *		Modle:
Country *		Phone *
Email *
Comments or Questions*

Specification	Unit	C518	C5112	C5116	C5120	C5123	C5126
Max. turning diameter	mm	800	1250	1600	2000	2300	2600
Table diameter	mm	720	1000	1400	1800	2000	2300
Table height of workpiece	mm	800	1000/1200	1000/1400	1250/1400	1350/1500	1350/1500
Max. weight of workpiece	t	2	3	5	8	8	8
Max. torque of table	KN.m	20	25	30	40	40	45
Range of table speeds(16 steps)	r/min	10-250	6.3-200	5-160	3.2-100	3.2-100	3.2-100
Max. cutting force of rail head	KN	18	18	22	22	22	22
Max. cutting force of side head	KN	13	13	18	18	18	18
Swivel of rail head	Degree	±30	±30	±30	±30	±30	±30
Range of feed rates(grade 12)	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
Horizontal travel of raihead	mm	570	700	915	1050	1180	1380
Ram travel of rail head	mm	650	650	800	800	1000	1000
Ram hor.travel of side head	mm	500	500	600	630	630	630
Vertical travel of side head	mm	810	900	980	980	980	980
Raoid traverse of tool head	mm/min	4000	4000	4000	4000	4000	4000
Elevating speed of cross rail	mm/min	440	440	440	440	440	440
Height of tool bar section(W×H)	mm	30×40	30×40	30×40	30×40	30×40	30×40
Power of main motor	KW	22	22	30	30	30	37
Overall dimensions(L×W)	mm	2080×1820	2360×2300	2800×2700	3200×2800	3600×2850	3900×2950
Height of machine	mm	2730	3580	3870	4000	4200	4200
Weight of machine(Approx)	t	7.8	9	12	17.5	18	20
