Model CK160(CK200) X 300A/B CNC Lathe is Double coordinates
2 axis simultaneous, semi-closed loop control of CNC lathe.the frame
use whole cast structure body,slant 30°saddle structure arrangement,
Linear Guideway,Drived by Ballscrew.Great Dynamic characteristics,
High precision, Strong rigidity.Full covered Guard Protection,Internal
sliding door from Left Side, Independent Chip gather water tank,with
good chip removal,CNC Controller Using Mitsubishi E60(FANUC 0i
mated TD),longitudinal and transverse AC Servo Motor. mini cnc lathe
Applicable for shaft parts size under Ф200×300（㎜）,
disk shapes parts size under Ф280mm,Max.Swing dia. On
slide Ф420mm.
Machining the short shaft(or disk shapes) parts with
complicated geometrical shape,various size,High accurancy.
Machining the parts of Cylinder, cone surface, stepped
surface, spherical and others all kinds parts with surface of
revolution.
In 45 degree slant bed structure, can reduce the clearance by the self weight of workpiece.

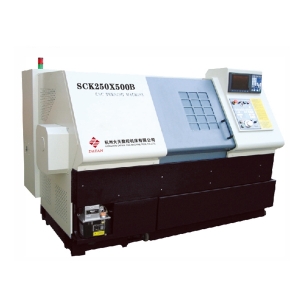

The New CK250 gain more precision.
Adopting high quality straight rolling guide,can meet the demand in high
speed and high efficient works,less friction and less distortion.Improving
processing precision,can guarantee the precision stablity in cutting
works.
The whole machine in high rigidty, the cutting power and the
weight of workpiece are in same way, it makes spindle more
stable, and less quiver in cutting.In heavy cutting,keeps the
high precision,and cutting the chips fully, easier to remove
the chips
The Spindle box adopts system in preventing distortion of heat,keeps
the stablity of spindle.
Spindle adopts imported bearing(NSK From Japan), and match with
the German KLUBER senior grease, high precision, strong rigidity, long
service life
Rely on high precision and large diameter (Ф160 mm) teeth plate
centering hydraulic+servo Tool Turret, with high precision, fast
inversion,and two-way choice Tool to the nearest function.Few
breakdowns,and long service life.
The Optional programming tail stock in high precision,high rigidity,
works on long type work piece perfectly.
Slant bed structure with guide protection,it protects the screw
and guide, and keeps the chips away from machine as well.
the optional chips conveyor, makes the machine more clear,
and more easier to operate.
mini cnc lathe
Adopts 6 or 8 inch(Choose one)Hollow/Solid hydraulic Power
chuck ,loading convenient and reliable, reduce the operator
labor intensity. mini cnc lathe
