Home > PARTS > VC51 Series CNC Lathe

VC51 Series CNC Lathe

Modle:VC5132

Features:

Packing:: Wooden Case,Standard packing

Delivery Time:: 60 Working Days

Key Specification:

1800
X axis travel/mm
1000
Z axis travel/mm
GSK980
Control system
3200
Capacity Max. Swing
Vertical
Tool Machine's type

Product Details Specification

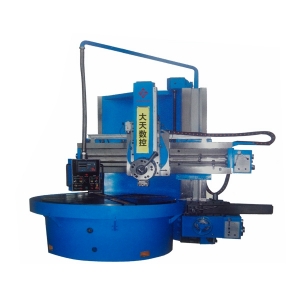

Single Column Vertical Lathe C5132/CX5132

Main Use:

This Series of price cnc lathe Machine is Single Column Vertical Lathe,It has a railhead and a sidehead,It's suitable of the ferrous,nonferrous metal and some kinds of non-metal material with hard alloy,high capability and high speed stell tools,this price cnc lathe can perform finely and roughly turning cylinder and inner hole,inner and outer taper,grooving,drilling,tapping and reaming.

cnc double column machining center GL2740
4200*2700*1000
C52 Series CNC Lathe C52 Series
1400x1000

Name *		Modle:
Country *		Phone *
Email *
Comments or Questions*

	C5116/CX5116	C5120/CX5120	C5123/CX5123	C5126/CX5126	C5132/CX5132
Max.turning diameter(mm)	1600	2000	2300	2600	3200
Table diameter(mm)	1400	1800	2000	2300	2830
Max.Weight of workpiece(T)	5	8	8	10	10/30
Speed range of table(r/min)	5-160	3.5-111.1	2.5-80	1.4-45	0.5-63
Speed-step of Table	16 Steps	16 Steps	16 Steps	16 Steps	16 Steps
Feed range of tool post(mm/min)	0.8-86 12 steps	0.8-86 12 steps	0.8-86 12 steps	0.8-86 12 steps	0.8-86 12 steps
Rapid Traveling speed of Tool post(mm/min)	1800	1800	1800	1800	1800
Power of main motor(kw)	22	30	30	37	DC 55/75
Max.working height of workpiece(mm)	1000(1200/1400/1600/1800)	1200/1400	1350(1600/1800)	1500(1800)	1600(1800)
Travel of railhead Horizontal(mm)	915	1050	1150	1300	1800
Travel of railhead Vertical(mm)	Turret 800 Ram 1000	Turret 800 Ram 1000	Turret 800 Ram 1000	1000	1000
Travel of sidehead Horizontal(mm)	630	630	630	730	730
Travel of sidehead Vertical(mm)	900	1150	1150	1180	1180
Max.travel of crossbeam(mm)	650/850/1050/1250/1450	850	1050	1200	1200/1400
Moving degrees limit of tool post(°)	±30°	±30°	±30°	±30°	±30°
Sectional Size of Tool bar(W×H)(mm)	30×40	30×40	30×40	30×40	30×40
Power of feed motor(kw)	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8
Weight of machine (About T)	12.5	15	18	22	30
Overall diamensions(L×W×H)(mm) (Standard Model)	2830×2670×2810	3100×2800×3010	3210×2850×3300	3300×4000×3500	5100×4400×3800
Note: Technical specification of price cnc lathe are subject to change without notice.Special orders will be according to the contract.The lathe CX5112/CX5116 is equipped with a digital display device.
