Home > Gantry > cnc gantry machine center

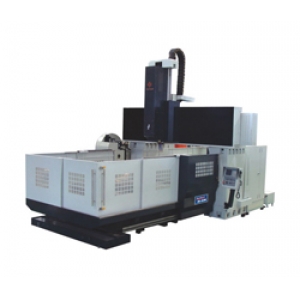

cnc gantry machine center

Modle:GL3480

Features:: high speed and high rigidity

Packing:: Wooden Case,Standard packing

Key Specification:

8200
X axis travel/mm
4000
Y axis travel/mm
1250
Z axis travel/mm
6000
Spindle speed/rpm
8000*2600
Table size/(L*W)
FANUC
Control system

Product Details Specification

Absorb advanced CNC machine technology and manufacturing standards from United states and Japan. The worktable eith high rigid roller-type guideways has ensured the machine excellent
rigidity and stability. With gear plate precise positioning, the
NC rotary table can keep a ong-term accuracy in this gantry machine center.

gantry machine center

Name *		Modle:
Country *		Phone *
Email *
Comments or Questions*

Model No. gantry machine center		GL-3460	GL-3480
Capacity	X axis travel/mm	6200	8200
	Y axis travel/mm	4000	4000
	Z axis travel/mm	1250	1250
	Spindle nose to worktable/mm	310-1310
Worktable	Table size(L*W)	6000*2600	8000*2600
	Gate width/mm	3400	3400
	T-slot(widthnumbersspan)	28*200(translot)
	Max load on the table/T	25	30
spindle	Spindle speed/rpm	ZF two speed gearbox(1:1/1:4)/6000(4000)
	Spindle taper	7/24 Taper No.50
	Spindle motor/kw	15/18.5
Feedrate	X,Y axis rapid traverse(M/min)	10	10
	Z axis rapid traverse(M/min)	10	10
	Max cutting feedrate(mm/min)	100-7000
A.T.C	Toolmagazine capacity(opt)/pc	20/24/32/40/60
Optional	Max exterior tool diameter/mm	φ200
	Max tool length/mm	350
	Max tool weight/kg	20
	Tool change time/sec(T-T)	3.5
Accuracy	Axis positioning accuracy/mm	0.025<5000
Accuracy	Axis repeatability positioning accuracy/mm	0.015
Machine size	Power requirement/KVA	40
	Space requirement (L×W)	15000*7500	19000*7500
	Machine height/mm	6250	6250
	Machine weight(T)	92	105
	Control system	FANUC
